Product Specifications
Consultation Display CenterDifference contrast
  •
  •   Model 98C10 86C10 86C20 75C10
  •   Panel size 98" 85.6" 85.6" 74.5"
  • Display parameters Resolution 3840*2160   3840*2160   3840*2160   3840*2160
  •   Scanning Frequency 60Hz   60Hz   60Hz   60Hz
  •   Dot pitch 0.5622*0.5622mm   0.4935*0.4935mm   0.4935*0.4935mm   0.42975*0.42975mm
  •   Grayscale 14bit   14bit   14bit   14bit
  •   Viewing angle H178°/V178°   H178°/V178°   H178°/V178°   H178°/V178°
  •   Brightness 500cd/m²   410cd/m²   410cd/m²   450cd/m²
  •   Contrast ratio 1300:1   1200:1   1200:1   1200:1
  •   Response time 8ms   8ms   8ms   8ms
  • Power waste Power ≤600W   ≤450W   ≤450W   ≤250W
  • Interface Input DVI/DP*2/HDMI*2/USB*4   DVI/DP*2/HDMI*2/USB*4   HDMI*7/USB2.0*2/USB3.0*2/LAN/VGA/TUNER/Ypbpr/AV-IN   DVI/DP*2/HDMI*2/USB*4
  •   Output -   AUDIO   PHONEJACK/AV-OUT/AUDIO/SPDIF   AUDIO
  • Specifications Bare dimension(Without Base) 2236.9mm*123mm*1292.9mm   1980.2mm*90mm*mm1152.8mm   1980.2mm*mm89.45mm*mm1152.8mm   1739.8mm*87.4mm*1018.2mm
  •
  •   Model 70C10 65C20 65C10 55C10
  •   Panel size 70" 65" 64.53" 54.64"
  • Display parameters Resolution 1920*1080   3840*2160   3840*2160   3840*2160
  •   Scanning Frequency 60Hz   60Hz   60Hz   60Hz
  •   Dot pitch 0.807*0.807mm   0.372*0.372mm   0.372*0.372mm   0.315*0.315mm
  •   Grayscale 14bit   14bit   14bit   14bit
  •   Viewing angle H178°/V178°   H178°/V178°   H178°/V178°   H178°/V178°
  •   Brightness 400cd/m²   500cd/m²   500cd/m²   500cd/m²
  •   Contrast ratio 4000:1   1100:1   1100:1   1100:1
  •   Response time 8ms   10ms   8ms   8ms
  • Power waste Power ≤250W   ≤200W   ≤200W   ≤150W
  • Interface Input DP/DVI/VGA/HDMI/USB*3   HDMI*7/USB2.0*2/USB3.0*2/LAN/VGA/TUNER/Ypbpr/AV-IN   DVI/DP*2/HDMI*2/USB*4   DVI/DP*2/HDMI*2/USB*4/AUDIO
  •   Output -   PHONEJACK/AV-OUT/AUDIO/SPDIF   -   -
  • Specifications Bare dimension(Without Base) 1739.8mm*87.4mm*1018.2mm   1513.4mm*92.5mm*889.4mm   1513.4mm*92.5mm*889.4mm   1294.6mm*84.45mm*765.4mm
  •
  •   Model 55C10(white) 55C13 43C10
  •   Panel size 54.64" 54.64" 43"
  • Display parameters Resolution 3840*2160   3840*2160   1920*1080
  •   Scanning Frequency 60Hz   60Hz   60Hz
  •   Dot pitch 0.315*0.315mm   0.315*0.315mm   0.4902*0.4902mm
  •   Grayscale 14bit   14bit   14bit
  •   Viewing angle H178°/V178°   H178°/V178°   H178°/V178°
  •   Brightness 500cd/m²   500cd/m²   450cd/m²
  •   Contrast ratio 1100:1   1100:1   1100:1
  •   Response time 8ms   8ms   12ms
  • Power waste Power ≤150W   ≤150W   ≤90W
  • Interface Input DVI/DP*2/HDMI*2/USB*4   DVI/DP*2/HDMI*2/USB*4   DP/DVI/VGA/HDMI/USB*3
  •   Output -   AUDIO   -
  • Specifications Bare dimension(Without Base) 1294.6mm*84.45mm*765.4mm   1294.6mm*84.45mm*765.4mm   1012.9mm* 92.45mm* 608.1mm
Remarks: KTC will provide the information as correct as possible. Product photos on this website may vary from the real products. Products information may vary from the products manual available in the market. Please use the products subjected to the specific information on the user manual. For details, please contact the related persons.
Detail Pictures of Product

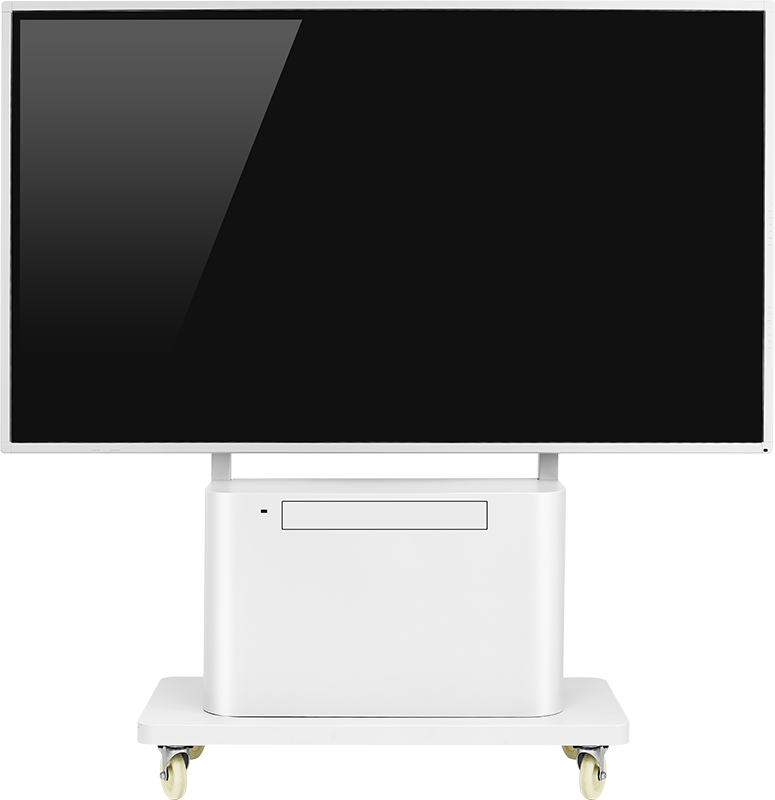

  • Front

  • Front
